Finance and Operations Virtual Entity Manager for XrmToolBox

As Microsoft pursues its One Dynamics, One Platform initiative, substantial investments are made to integrate the D365 Finance and Operations suite with the Power Platform and Dataverse.

These includes the ability to surface most F&O tables as virtual entities in Dataverse. Bringing full CRUD capabilities, but also opening up the whole Power Platform ecosystem to consume and act on F&O data. Think Power Automate, Model-driven and Canvas Apps, PCF Controls, Power Pages, etc.

While experimenting with Finance and Operations virtual entities, I found gaps in the tooling and processes required to enable and manage them. This led to the inception of my latest tool for the XrmToolBox, the FinOps Virtual Entity Manager.

Here are the main features that I’ll explain later on :

– 📋List/Filter available Finance and Operations entities
– 👁️Enable/Disable visibility of entities in Dataverse (Virtual entity enabled)
– 🔁Enable/Disable change tracking of entities
– 🔄Refresh entity metadata
– 🤝Integrated with the Metadata Browser Companion from Tanguy Touzart to explore virtual entities attributes

But first, let’s put things in context.

My ode to XrmToolBox

For most Power Platform developers, the XrmToolBox needs no introduction. But if you come from the F&O world you might not be familiar with this ecosystem and could be wondering what the fuss is all about.

To make a long story short, the XrmToolBox is a versatile and robust toolkit for Dynamics 365 and Power Platform professionals developed and maintained an by Tanguy Touzart.

With its user-friendly interface to organize environment connections and extensive range of powerful plugins developed by the community, the XrmToolBox helps users to streamline development, customization, administration and troubleshooting tasks within Power Platform environments.

Quite frankly, I think I can count on my fingers the days that I haven’t opened the toolbox on my day to day activities. Some of these tools have literally saved my sanity more than once.

Also as a tool author myself, the platforms provides a level of reach and exposure that would be impossible to achieve independently, thanks to its widespread use.

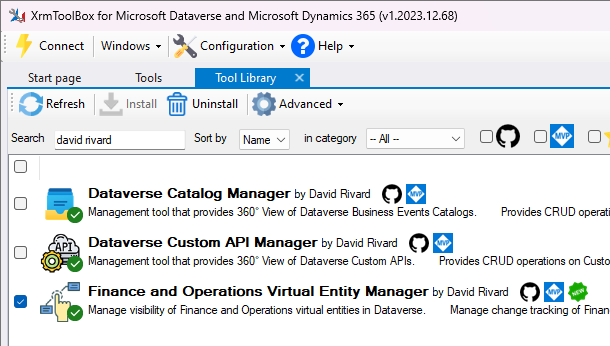

So, wait no more and install the toolbox and be sure to download the FinOps Virtual Entity Manager (…and my other tools at the same time… shameless plug 😏 )

Background and Pre-requisites

Even if they are often marketed together (under the Dynamics 365 umbrella), Finance and Operations and Power Platform / Dataverse are two entirely distinct product offerings. Each possesses its own unique architecture and serves vastly different purposes.

For the digital archeologists, Finance and Operations is derived from Dynamics AX whereas PP/Dataverse get its roots from Dynamics CRM and has dramatically evolved to the current PaaS (Platform as a service) that we know and love today.

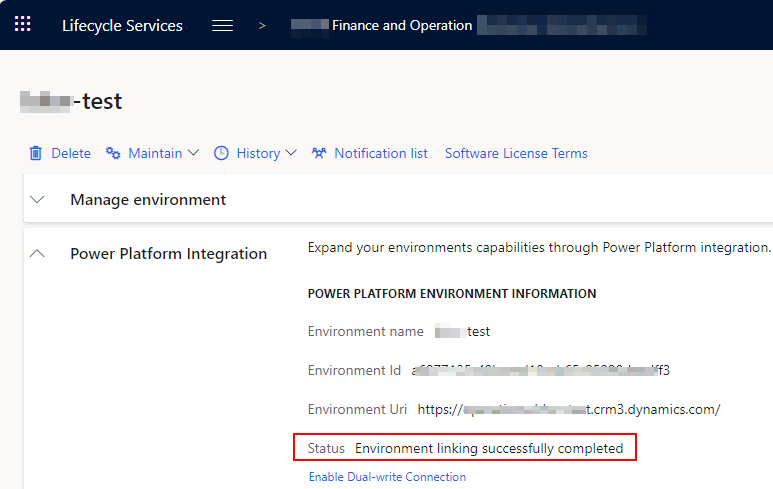

In an effort to integrate and bring these 2 products together, the product team have made it quite easy to integrate a Finance and Operations environment to a PP/Dataverse environment through the Lifecycle Services portal. This setup goes beyond the scope of this blog post but you can find relevant info here.

🔗Enable Power Platform Integration – Finance & Operations | Dynamics 365 | Microsoft Learn

🔗One Dynamics One Platform – Dataverse C# Plugin for Dynamics 365 F&O — PowerAzure365

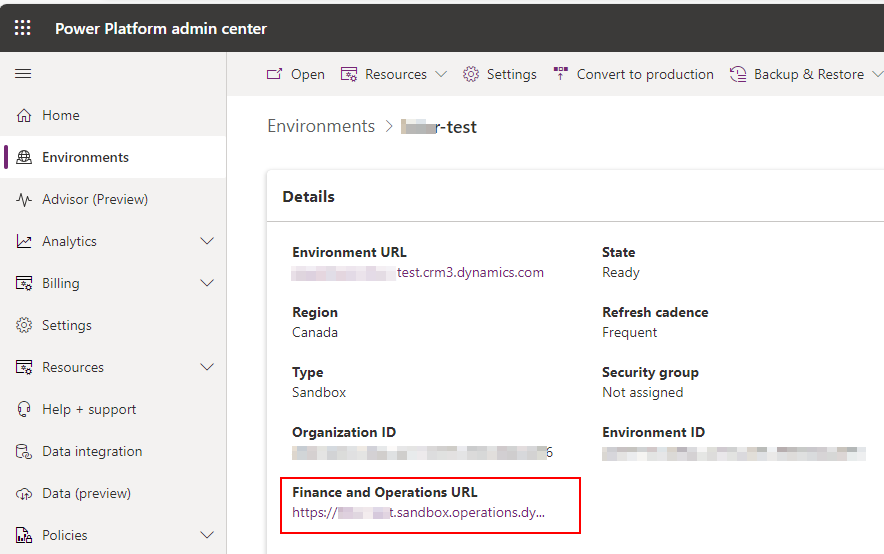

Once the integration completed you can appreciate a new Finance and Operations URL when navigating to the linked Dataverse environment from the Power Platform Admin Center (PPAC)

This is where the fun begins 😎.

Connecting to the Tool

I won’t go in details on how to setup connections for the XrmToolBox, it’s a vast topic, but here is an helpful link

🔗Connecting to an environment · XrmToolBox

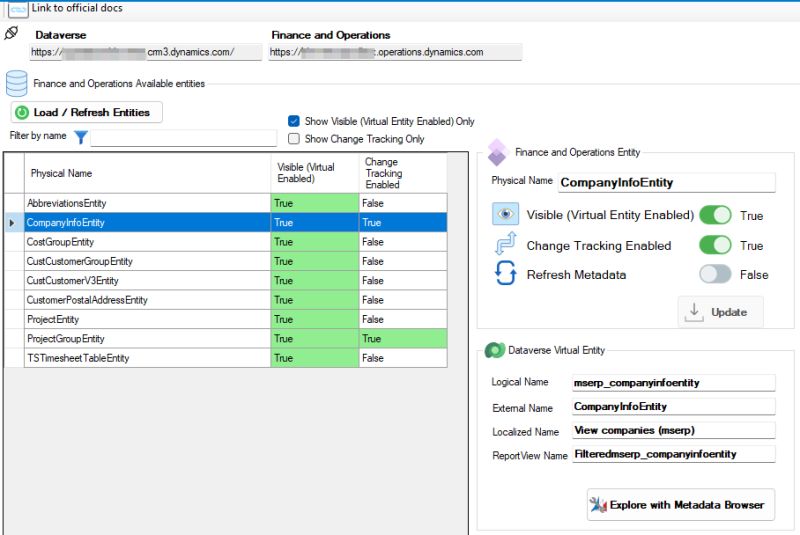

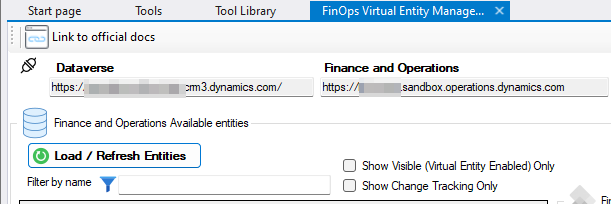

Once connected to an FinOps/Dataverse linked environment, if you fire up the FinOps Virtual Entity Manager, you’ll be presented with the respective URLs of the Dataverse and the FinOps environments.

By clicking on the Load/refresh entities the list of Available Finance and Operations entities will be loaded on screen.

If you are interested on what is happening under the hood, I simply fetch the data from the mserp_financeandoperationsentity table that is itself a Virtual entity that is created part of the FinOps/Dataverse integration.

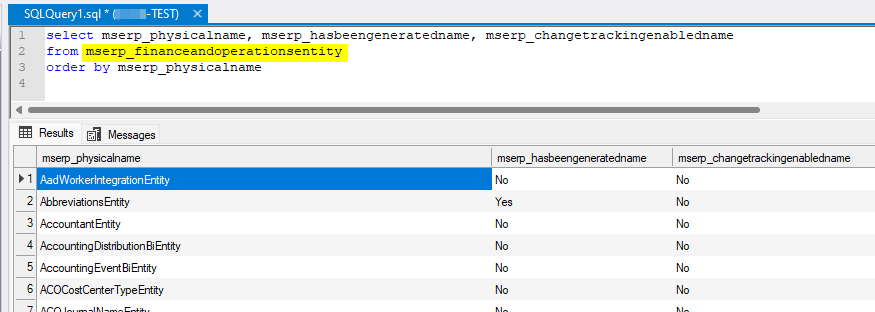

As you can see here, I’m querying the entity using SQL 4 CDS by Mark Carrington, another essential tool of the xrmTooolBox.

Navigating through the entities

There are about 3000 exposed entity coming from FinOps, so its important for the tool to be able to filter the tables to give a better user experience.

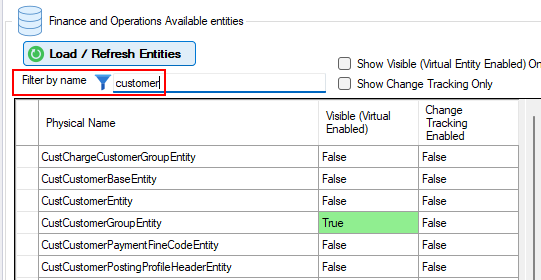

The tool, currently supports filter on the physical name, visible (virtual enabled) and change tracking enabled fields.

Act on selected Finance and Operations entities

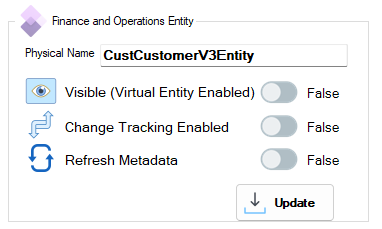

By selecting a table from the list of available entities, this will populate the side-pane with the table info and give users the possibility to take action on certain parameters of the table.

👁️Enable/Disable visibility (Virtual entity enabled)

Enabling visibility of a F&O table will automatically expose that table as a Virtual entity in Dataverse. The new virtual entity will be prefixed with mserp_ in the environwement.

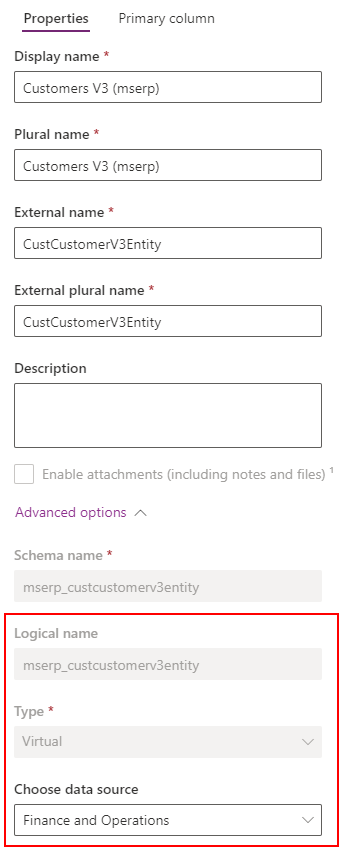

In the PowerApps maker portal you will see the table like this.

From now on, the bar is open for that table on Dataverse side. you can for example :

• Query the data from Dataverse like any other native tables
• Act on the data with Power Automate, Dataverse plugins, Custom APIs
• Create rich user interfaces with full CRUD capabilities like Model Driven apps, Canvas apps and Power Pages.

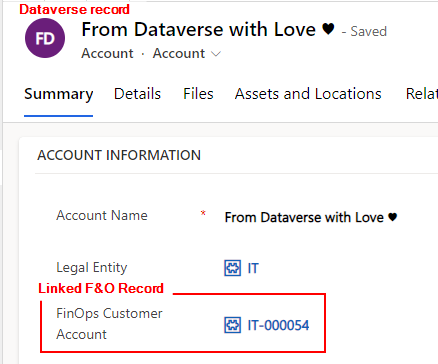

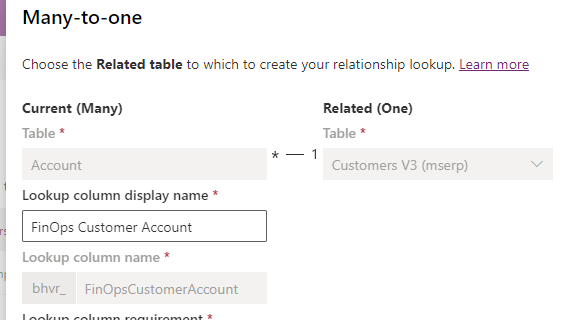

• Create relationships between native Dataverse tables and FinOps tables (that one is pretty impressive)

Note that the security/licensing context is not bypassed here, all consuming users need to be properly configured in Finance and Operations.

🔁Enable/Disable change tracking of entities

For certain scenarios like Synapse link / Fabric integration of the tables data, its necessary to enable the change tracking at the virtual table level.

Unfortunately the switch to enable change tracking is grayed out if you want to set it up at the table level in the maker portal.

By using the tool you can easily enable the change tracking of the FinOps virtual entity.

The virtual entity will then show up with the Track Changes switch enabled in the maker portal.

As mentioned by Nurlin Aberra in a recent post, if you run into errors while activating the change tracking property, you might want to check these requirements on the Finance and Operation side

Row version change tracking for tables and data entities – Finance & Operations | Dynamics 365 | Microsoft Learn

🔄Refresh entity metadata

If fields are added on an F&O tables afterward, you will want to update the metadata of the virtual entity, this is where you will use the Refresh Metadata switch on the entity

I haven’t really tried it but, it speaks for itself.

Explore Metadata

This feature is among my top favorites in the tool, mostly because I only had to write one single line of code to integrate my tool with the awesome Metadata Browser Companion tool from Tanguy Touzart.

The end-result is quite slick IMHO as the user doesn’t even notices that there is a second tool involved. Kudos to Tanguy for making his tool extendable.

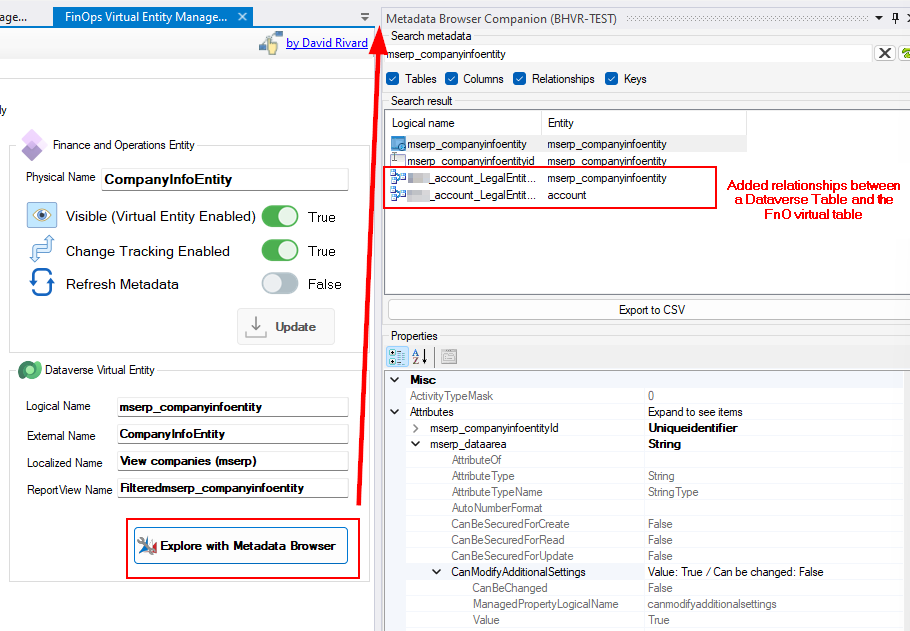

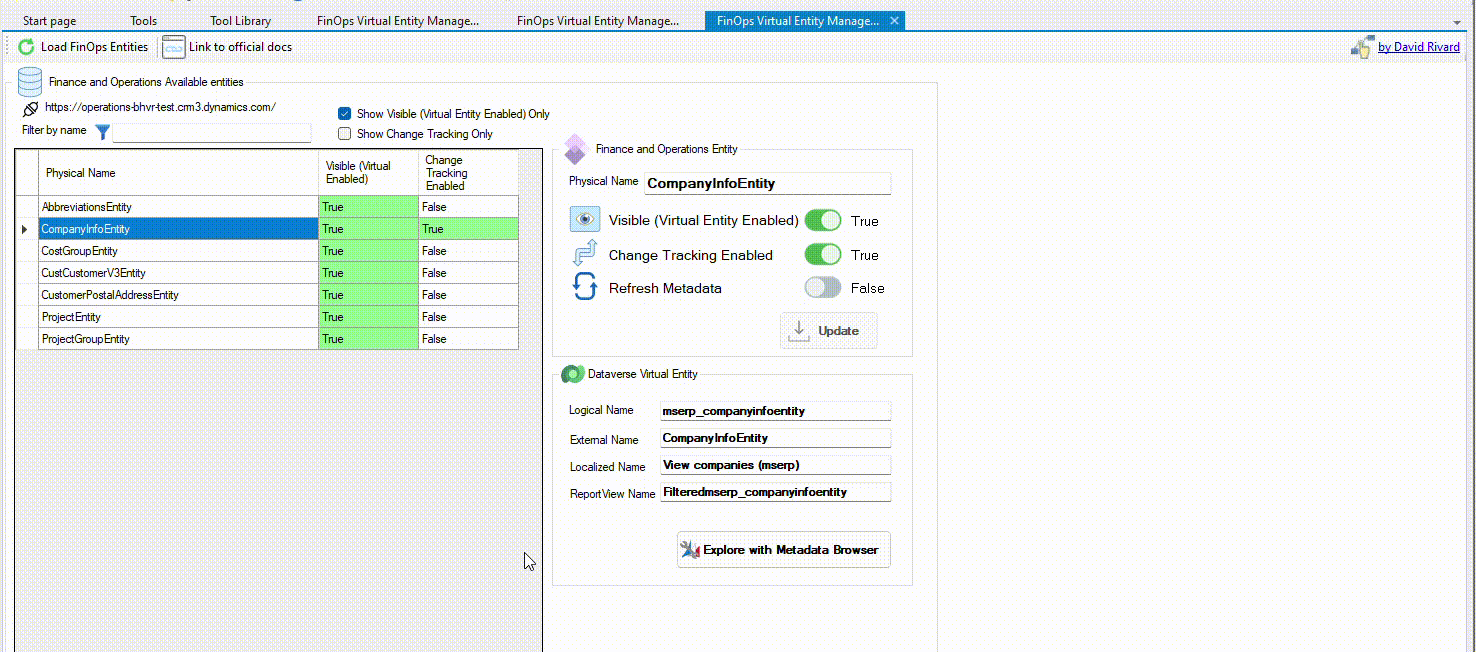

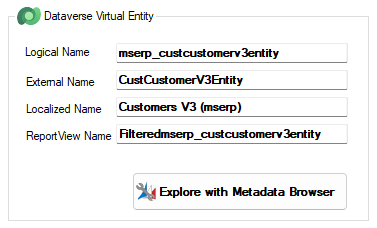

As you can see, clicking on the Explore with Metadata Browser opens the companion tool and we can drill-down on all the available metadata of the virtual entity including the newly created relationships demonstrated earlier

TakeAway

That’s it for now, I hope the tool will be helpful to some of you, as I really think it fills a gap. Please reach out if you have any comments or have any ideas for improvements, feedback is greatly appreciated (link to the github repo below).

🔗drivardxrm/Driv.XTB.FinOpsVirtualEntityManager: XrmToolBox tool to manage Finance and Operations Dataverse Virtual Entities (github.com)

Speaking of the FinOps/Dataverse convergence, I see a lot of potential especially on the edges of the Finance and Operations ERP. Some scenarios like data entry, acting on business events and reporting might benefit from the Power Platform in the long run.

Also please note that I consider myself a total newbie on Finance and Operations, as I’ve only recently been exposed to it. Therefore, the views expressed in this post might be tainted by the Power Platform lens which is what I know best. I would love hear from Finance and Operations experts on that topic and understand what challenges they foresee with such architectural approaches.

Until then…
